Whiteboard animation design best practices
Good whiteboard design is not a contest to fill the canvas. It is the craft of deciding what the viewer should see now, what should remain as context, and what can wait for the next scene.
Scribe Animator provides a broad visual toolkit—text, shapes, images, vector artwork, smart connectors, Draw Steps, object animation, camera behavior, scenes, backgrounds, and audio. The design improves when those tools share one visual grammar instead of competing for attention.
Establish hierarchy before animation
Design one representative finished frame in still form first. Identify:
- the primary statement;
- the visual that explains it;
- the labels required to read that visual; and
- supporting detail that can remain quieter.
If everything is large, bold, saturated, and moving, there is no hierarchy. Use size, position, contrast, and timing together. A heading can be visually prominent without flying across the canvas; an important connector can arrive at the precise moment the narration describes a relationship.
Keep objects inside the white canvas. The gray pasteboard is editing space and is not part of the visible output. Use canvas zoom and fit controls to inspect the frame without confusing viewport movement with object movement.
Build a small visual system
Color
Choose a restrained palette with explicit jobs:
- one primary dark color for core lines and text;
- one accent for the current idea or completed step;
- an optional secondary accent for a genuinely different category; and
- a background that preserves contrast.
Do not assign a new color to every object. Reuse color semantically: if blue means “approved” in scene 1, it should not mean “warning” in scene 3.
Scribe separates project canvas settings, scene background overrides, and background assets. Decide which layer owns the appearance before duplicating scenes. The images and backgrounds guide explains those boundaries.
Typography

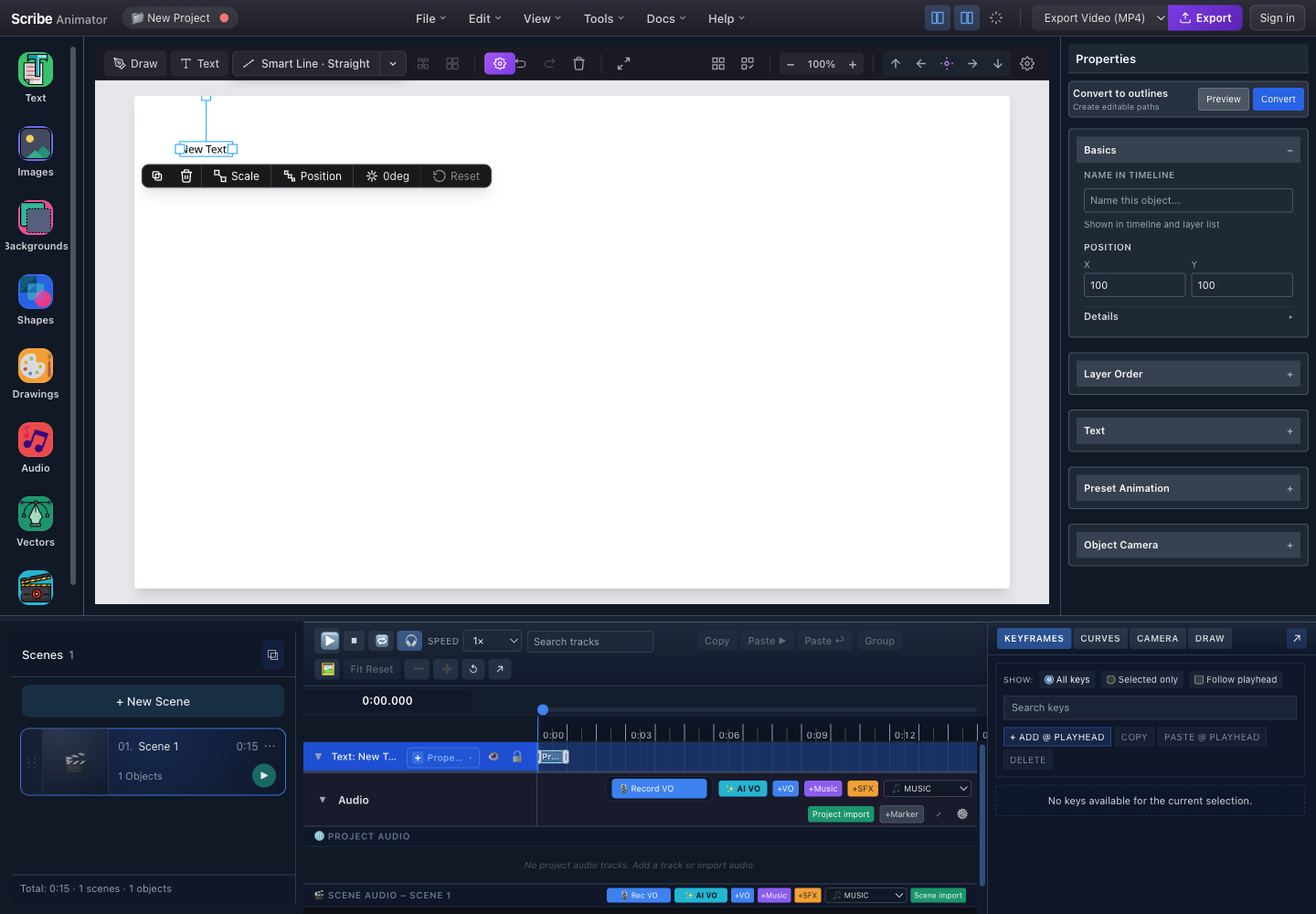

Use a limited set of text roles: title, section heading, label, and supporting line may be enough. Keep text editable while writing and layout are active. Text-box width, font size, and object scale are different controls; changing one does not substitute for the others.
Convert text to outlines only when the lettering must become drawable geometry or receive a final vector treatment. After conversion, it is no longer ordinary editable text. Review text and typography before outlining important copy.
Lines, shapes, and icons
Match visual weight. A very thick smart arrow beside delicate line art looks like it belongs to another project. Use connectors when the relationship matters, not as decoration. Scribe's smart lines and arrows can attach to objects so their endpoints update when those objects move, which is safer than manually aligning an ordinary line after every layout revision.
Make the reveal explain something
A draw animation should answer “why this order?”
- Draw the container before the items it organizes.
- Introduce two nodes before the arrow that relates them.
- Reveal the exception after the normal path is understood.
- Finish a label before asking the viewer to compare it.
Auto-planning can propose steps based on geometry, route length, or layer order. It cannot know which concept is most important. Inspect the generated list and revise targets, starts, and durations. A decorative flourish should not occupy the moment when the narration introduces the main mechanism.
Use one hand/tool identity at project scope when consistency matters. Add a scene or step override only for a deliberate reason. A thick marker may cover fine vector details; a fine pen can look implausible against broad artwork.
The Draw Steps guide explains planning strategies, hand inheritance, step editing, and precomputation.
Treat timing as part of layout
The viewer needs time to inspect the completed composition. If the last object finishes at the exact scene boundary, the design technically appears but is never comfortably seen.
Plan three phases:
- Arrival: the minimum motion needed to establish the object.
- Meaning: the moment when narration and visual relationship align.
- Hold: enough still time to read the result before the next change.
Avoid applying multiple timing systems to the same property without understanding authority. A scale preset and scale keyframes do not average together; matching property keys own the explicit value. Draw Steps can own reveal progress even when a Draw In preset is present. Use the timing-source message in the Properties panel and consult timeline and motion.
Use camera movement to clarify, not energize
Begin with framing, not motion. If all important content fits legibly in one view, keep the camera stable. Use a track or follow behavior when the explanation travels through a larger diagram, and use a close-up when detail would otherwise be unreadable.
Leave context around a focused object. Repeated jumps between distant areas can make the viewer rebuild the mental map each time. Preview camera behavior alongside Draw Steps and object transforms; all three affect what the viewer perceives even though they edit different state. The camera and paths guide compares the available camera sources and their interaction.
Branding without turning the canvas into an advertisement
Branding works through consistency more than logo size:
- apply approved colors to meaningful roles;
- use a compatible font system;
- choose one illustration and line style;
- keep hand/tool treatment consistent;
- reserve a small logo placement for frames where it does not compete; and
- make the call to action sound like the brand's actual voice.
Templates can provide repeatable structure, but inspect whether they are a block, scene, or complete project before applying them. A template should accelerate a visual system, not force every story into the same composition.
Dos and don'ts
| Do | Don't |
|---|---|
| Name scenes by their narrative purpose | Leave a long project as generic numbered scenes |
| Keep one clear focus per beat | Reveal unrelated assets simultaneously |
| Use vector paths for art that genuinely needs drawing | Trace photographs merely to force a hand effect |
| Hold on the completed diagram | Cut away as soon as the final stroke appears |
| Preview with narration and at normal speed | Judge timing only by scrubbing |
Save an editable .scribe backup | Treat the rendered video as the only source |
| Check contrast and readable text size | Depend on color alone to distinguish categories |
Three worked design scenarios
These are hypothetical Scribe exercises, not published case studies.
Product workflow
Use three nodes, one attached smart arrow sequence, and one accent that follows the active stage. Keep the complete path visible in the final scene. A stable camera makes the relationship easier to retain than a close-up on every node.
Compliance lesson
Give each scene one decision. Reuse the same “allowed” and “not allowed” colors, but pair them with labels and shapes so color is not the only signal. Hold each completed decision long enough for narration to finish.
Classroom concept
Draw the base diagram, add one relationship, then introduce the exception. Use an equation object when mathematical notation matters and a separate editable text label for explanation. Avoid revealing the final formula before the relationships that justify it.
The final design review
Watch the export once without sound: the information order should still make sense. Listen once without looking: the narration should still be coherent. Then watch normally and check whether the two channels reinforce rather than duplicate each other.
Finally, inspect the actual exported file at the destination size. Thin lines, small labels, scene transitions, and audio balance can feel different outside the editor. The export verification guide provides a practical final checklist.
