Build editable AI explainers with smart connectors

Most generative-video workflows make the rendered clip the first durable artifact. That is useful when you want pixels immediately, but awkward when a reviewer asks you to move one box, rewrite one label, reroute an arrow, or change the order of two explanations.

Scribe supports a different boundary: an external AI assistant can draft structured TemplateEnvelopeV1 JSON, then Scribe validates and imports that structure as native scene objects. The AI proposes the arrangement; Scribe remains the editable authoring, playback, and export environment.

Verified on 22 August 2026

The canonical scene in this article was imported through File → Import AI JSON in the Desktop web editor on macOS with frontend@2.0.0. Its two rectangles remained stationary while the attached Smart Arrow revealed, backward and forward scrubbing stayed stable, and moving either rectangle recomputed the corresponding endpoint. Focused parser, template-remapping, connector-runtime, rotation, anchor, and Authoring API tests also passed. This run verified editable scene behavior; it did not validate a particular encoded video file.

Structured animation changes the handoff

The important choice is not “AI or manual.” It is what the AI hands to the editor.

Stage	Typical prompt-to-video workflow	Structured Scribe workflow
AI output	Rendered frames or a video clip	Candidate TemplateEnvelopeV1 JSON
Product boundary	The video is already flattened	Scribe parses, normalizes, and validates the envelope
Scene content	Pixels	Native text, shapes, vectors, paths, and relationship objects
Revision	Regenerate, mask, or edit around the clip	Select and edit individual objects, timing, and attachments
Motion and framing	Mostly determined during generation	Refine animations, Draw Steps, and camera behavior in Scribe
Delivery	Exported clip	Editable project first, supported export second

This is not a claim that Scribe currently runs a fully autonomous public AI video agent. Today, ChatGPT or another approved assistant can generate a candidate structure; the human brings that JSON into Scribe, reviews the validation result, edits the native scene, and decides when it is ready to export.

That distinction matters for explainer work. The text may change after subject-matter review. A cause-and-effect arrow may need a different anchor. The camera may need to hold longer over a diagram. Keeping structure alive makes those normal revisions local instead of requiring a new video generation.

What makes a Smart Connector different from an SVG arrow?

A flattened SVG arrow describes marks. A Smart Connector also describes a relationship.

Layer	Portable field	Responsibility
Native object	type: "smartArrow"	Tells Scribe this is an editable Smart Stroke with directional meaning
Semantic geometry	props.smartLine	Stores start, end, route mode, controls, elbow data, route points, and arrowheads
Attachments	top-level connector	Binds the start and/or end to another template-local object and anchor
Drawable geometry	props.paths	Supplies the vector paths rendered on the canvas
Reveal	animationType: "drawIn" or Draw Progress	Changes visible progress without moving the semantic attachments

This separation is what allows the line to stay attached after import. When a target really moves or rotates, Scribe resolves the named anchor against the target's evaluated bounds and updates the endpoint. When both targets are stationary, a draw reveal can advance without changing the semantic world start or end.

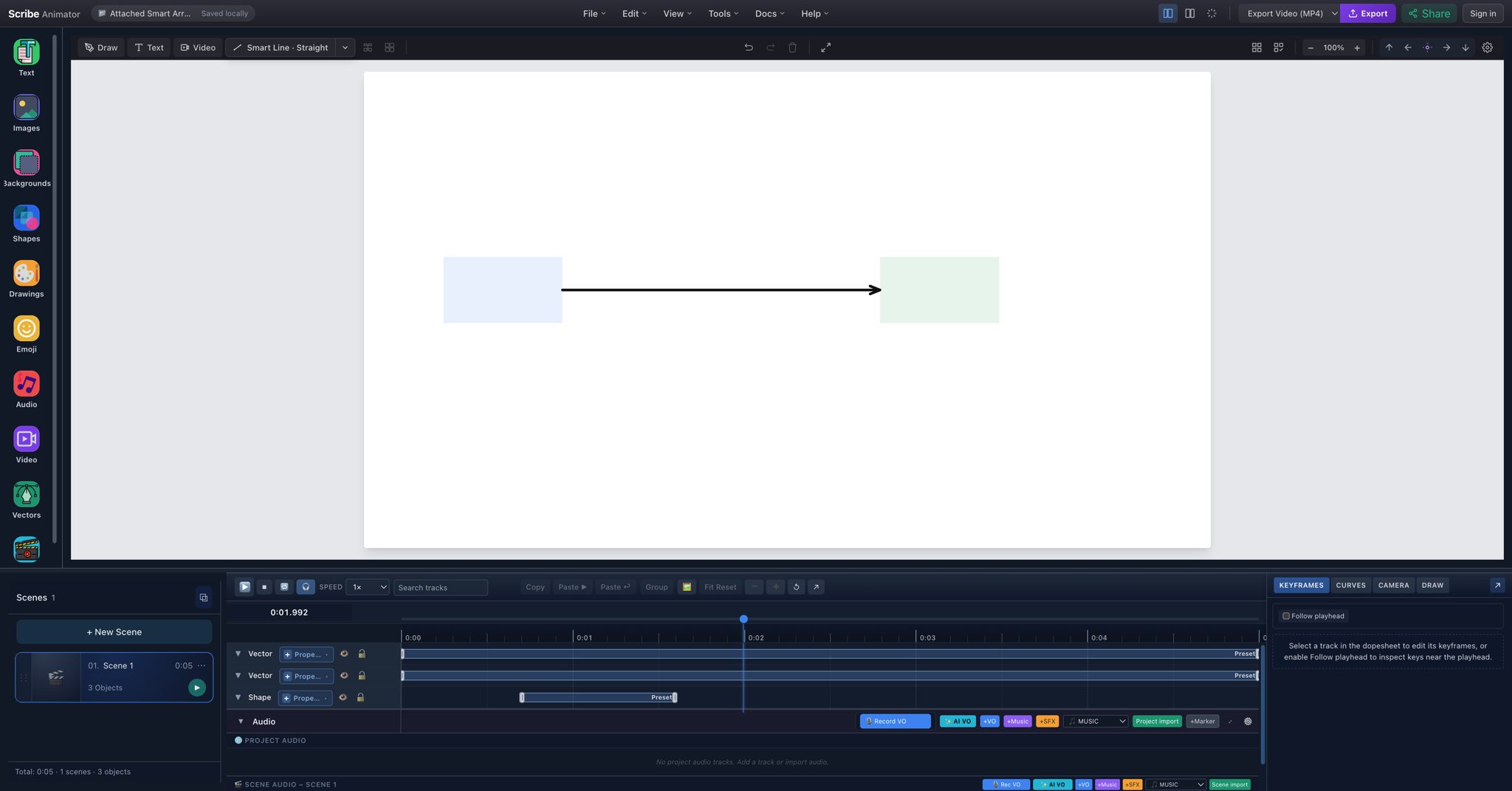

The canonical scene in the Desktop editor at 1.992 seconds. The native arrow resolves from the blue rectangle's right anchor to the green rectangle's left anchor.

Start from the canonical attached Smart Arrow

Download the complete tested scene JSON. It is an asset-free schema-v1 scene with deterministic IDs, two rectangles, explicit right to left attachments, and one Draw In Smart Arrow.

The following valid JSON fragment is the fixture's payload.objects core. Use the downloadable file for the complete TemplateEnvelopeV1 metadata and scene timing:

{
  "objects": [
    {
      "id": "box-a",
      "type": "shape",
      "x": 120,
      "y": 280,
      "width": 180,
      "height": 100,
      "props": {"shapeType": "rectangle", "fill": "#E8F0FE"}
    },
    {
      "id": "box-b",
      "type": "shape",
      "x": 780,
      "y": 280,
      "width": 180,
      "height": 100,
      "props": {"shapeType": "rectangle", "fill": "#E6F4EA"}
    },
    {
      "id": "arrow-a-b",
      "type": "smartArrow",
      "x": 300,
      "y": 330,
      "width": 480,
      "height": 1,
      "connector": {
        "start": {"targetObjectId": "box-a", "anchor": "right"},
        "end": {"targetObjectId": "box-b", "anchor": "left"}
      },
      "props": {
        "smartLine": {
          "routeMode": "straight",
          "start": {"x": 0, "y": 0},
          "end": {"x": 480, "y": 0},
          "endHead": {"type": "arrow"}
        },
        "paths": [
          {
            "id": "arrow-a-b-path",
            "d": "M0 0 L480 0",
            "stroke": "#111111",
            "strokeWidth": 4,
            "fill": "none"
          }
        ],
        "strokeColor": "#111111",
        "strokeWidth": 4
      },
      "animationStart": 700,
      "animationDuration": 900,
      "animationType": "drawIn"
    }
  ]
}

The x, y, and Smart Stroke points agree: the arrow's local line runs from (0, 0) to (480, 0), while the object's world origin places it between the rectangles. The attachment metadata is still authoritative at runtime, so later target edits can recompute those world endpoints.

Template application remaps box-a, box-b, and arrow-a-b to collision-safe runtime IDs. It also remaps both targetObjectId references as part of the same graph; the imported connector does not retain dangling references to the template-local names.

Choose anchors deliberately

Every attached endpoint accepts one of six anchors:

Anchor	Resolved point
auto	Chooses a side from the relative target or opposite endpoint
top	Center of the target's top edge
right	Center of the target's right edge
bottom	Center of the target's bottom edge
left	Center of the target's left edge
center	Target center

Named anchors rotate with the target. Use auto when a generated layout may rearrange and the nearest sensible side should be selected. Use an explicit anchor when the relationship has a stable visual grammar—for example, inputs on the left and outputs on the right.

The canonical attachment is intentionally compact:

"connector": {
  "start": {
    "targetObjectId": "box-a",
    "anchor": "right"
  },
  "end": {
    "targetObjectId": "box-b",
    "anchor": "left"
  }
}

For curved routes, elbow semantics, standalone endpoints, and arrowhead options, keep the deeper AI JSON Smart Connector reference and Smart Lines and Arrows guide beside your generated scene.

Draw In reveals the relationship; it does not relocate it

drawIn is a presentation layer over drawable path progress. It makes the visible draw front advance toward the final endpoint, but it must not rewrite the connector's semantic start or final end.

For stationary targets, these facts should remain true at the beginning, middle, and end of the animation:

• the source anchor resolves to the same world point;
• the destination anchor resolves to the same world point;
• props.smartLine keeps the same semantic route;
• only the visible amount of props.paths changes; and
• seeking backward and replaying produces the same result.

When a rectangle genuinely moves or rotates, the corresponding anchor should move and the connector should follow. Preventing that recomputation would make the connector look stable only by breaking its defining behavior.

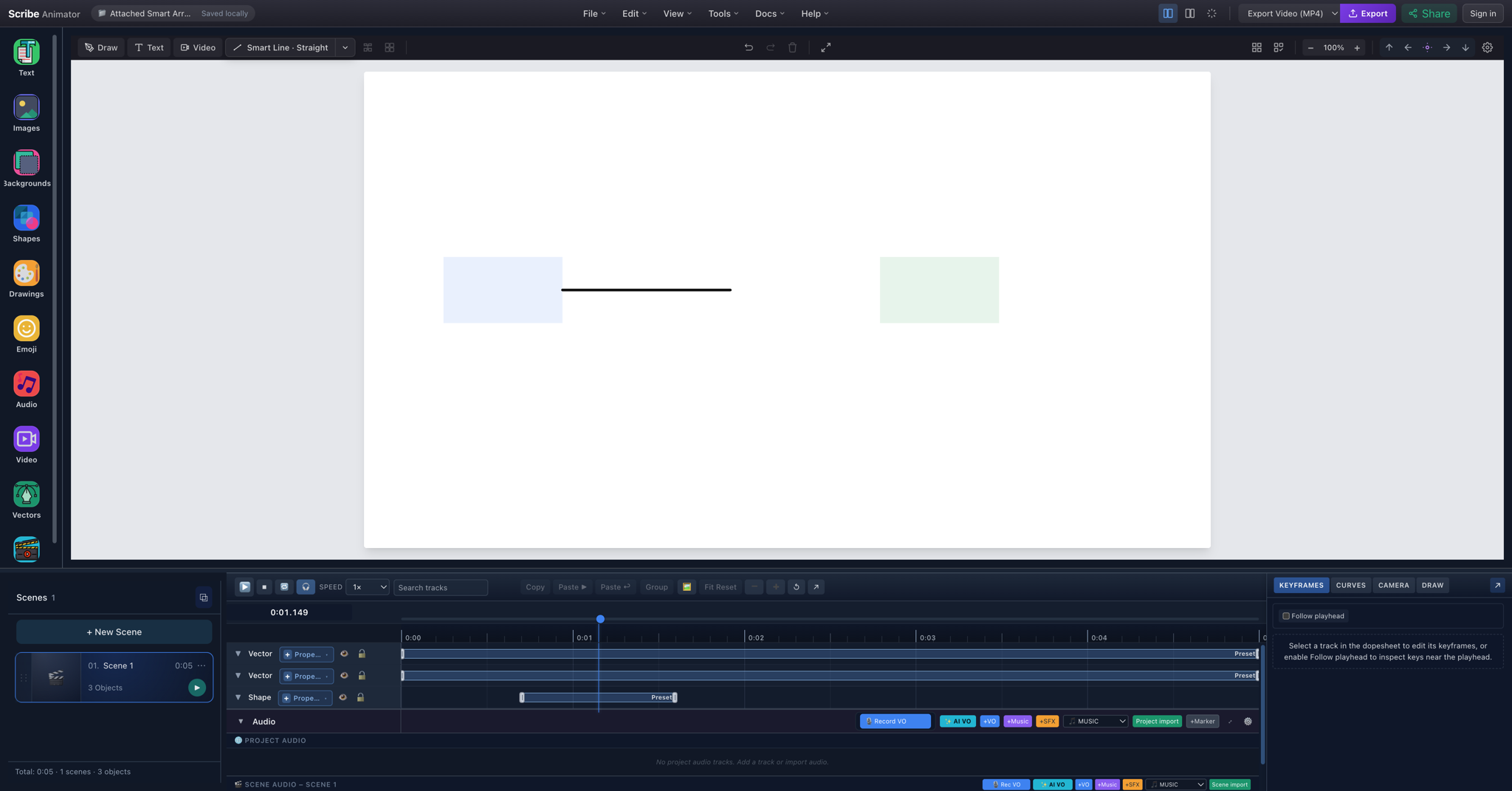

At 1.149 seconds, only part of the path is visible. Compare it with the completed capture above: both target rectangles and the connector's semantic endpoints remain fixed while reveal progress changes.

Do not paste a .scribe runtime object into Template JSON

Portable Template JSON and a saved .scribe project's runtime representation are related, but not interchangeable.

A runtime-shaped object commonly contains:

{
  "type": "smartArrow",
  "properties": {"smartLine": {}}
}

A portable TemplateEnvelopeV1 ObjectDTO uses:

{
  "id": "portable-arrow",
  "type": "smartArrow",
  "x": 100,
  "y": 100,
  "props": {"smartLine": {}}
}

The importer does not silently reinterpret arbitrary runtime objects. If a smartLine or smartArrow uses properties without portable props, it now reports an actionable diagnostic explaining the required field and warning against pasting a .scribe runtime object directly.

Run the real AI JSON workflow

1. Plan one explanatory job. Ask the model for a scene plan before asking for coordinates. Define the claim, labels, relationship direction, duration, and aspect ratio.
2. Request TemplateEnvelopeV1 JSON. Specify schema version 1, scene-local-v1 timing, unique IDs, finite coordinates, supported object types, and JSON-only output.
3. Keep the first draft narrow. Start with one scene and no external assets. Add complexity after the first import is legible.
4. Open File → Import AI JSON. Use the Desktop editor's file or paste path; do not import the candidate as a .scribe package.
5. Let Scribe validate it. Confirm envelope type, scene and object counts, duration, warnings, and reference errors before applying.
6. Create or insert intentionally. A project, scene, and block have different replacement and insertion effects. Save current work before choosing an action that replaces context.
7. Inspect native objects. Select the rectangles and Smart Arrow, verify both attachments, and confirm the arrowhead and route mode.
8. Edit the draft. Improve labels, spacing, colors, connector anchors, and reading order. Structural acceptance does not guarantee good design.
9. Refine motion and framing. Add or adjust animations, eligible Draw Steps, and camera behavior, then preview from before the first reveal through the final hold.
10. Export only after review. Seek backward and forward, replay, check the final frame, save an editable project, and then choose the supported delivery format.

The complete Create and import AI JSON guide covers normalization, warnings, apply actions, recovery, and the difference between Project and Scene by Scene modes. The template schema reference is the field-level source of truth.

What can AI JSON describe today?

The current importer allowlist supports the following useful building blocks. “Supported” means the parser recognizes the object type; it does not mean every possible property or asset URL is safe, available, or visually successful.

Capability	Portable representation	Practical note
Editable labels	text	Keep copy, bounds, font choice, and contrast reviewable
Basic boxes and cards	shape	Useful for deterministic first-pass layouts
Self-contained vector art	svg	SVG content is subject to intake safety and size checks
Raster art	image	Asset availability and provenance still need review
Freehand-style content	drawing	Use valid point and stroke data
Drawable vector routes	svgPath	Eligible geometry can participate in reveals and Draw Steps
Object collections	group	Nested children must remain valid portable objects
Relationships	smartLine, smartArrow, top-level connector	Preserves semantic geometry and attachment metadata
Simple entrances	object animation fields	Includes fade, slide, scale, Draw In, path-follow, typewriter, or none where compatible
Richer timing	timeline tracks, keys, and draw steps	All owners and references must resolve inside the envelope
Framing	scene camera mode and camera keys	Preview timing and target references in the actual editor

There is no dedicated emoji or icon ObjectDTO type. An icon is represented as an svg object; vector emoji inserted through Scribe's Twemoji drawing path likewise becomes vector/SVG-backed content. A typed Unicode emoji may remain part of a text object's string and depends on the selected font and platform rendering.

This article intentionally makes no AI JSON video-import promise. The shared template type union and the current import allowlist are not identical: ordinary video is not accepted by the current AI JSON validator. Build the first automated workflow from the types documented and tested here.

Can this workflow be automated?

Yes, within the current boundary—but distinguish architecture from product availability.

Available today: an AI assistant can produce JSON, a person or controlled tool can submit it to Scribe's validated Desktop importer, and the result remains an editable scene. The codebase also contains programmatic authoring primitives and protected infrastructure used for trusted/internal template automation. Those surfaces demonstrate that the model is automation-friendly.

Not generally available today: Scribe does not currently advertise an unrestricted public write API or a public MCP server for arbitrary agents. Do not put private authoring credentials in browser code, prompts, public examples, or client-side automations.

Potential future boundary: a supported agent surface could accept constrained scene plans or template envelopes, validate them through the same contracts, and return editable Scribe content. MCP is a possible transport for that future work, not a currently published capability.

So the practical automation path today remains:

1. generate candidate structure with an approved model;
2. validate it through Scribe's importer;
3. keep human review before applying or exporting; and
4. save the editable project as the revision source.

A useful first experiment

Download the attached Smart Arrow fixture, open Scribe Animator, and import it through File → Import AI JSON. Add text labels, change the rectangle colors, move each target, switch one explicit anchor to auto, and preview the Draw In again.

Once that single scene remains readable and stable, extend it into a second scene rather than asking a model for an entire finished explainer at once. The related editable AI scenes workflow shows the same structured principle across a two-scene project, while the explainer-video planning guide helps turn the technical pipeline into a coherent story.

AI is most useful here when it accelerates structure without taking editability away from the person responsible for the explanation.
