Camera System

Visual orientation

12345

Camera authoring stays beside the shared timeline so framing can be checked against scene and object timing.

Screenshot callouts

1. 1
   CAMERA drawer

   Opens camera authoring beside KEYFRAMES, CURVES, and DRAW.
2. 2
   Camera Mode

   Choose Fixed Scene Camera, Track, Follow Hand, or Follow Object.
3. 3
   Camera Summary

   Reports active modes, authored actions, overlaps, bookmarks, and transitions.
4. 4
   Mode-specific controls

   Fixed mode saves one view; other modes expose keys or follow targets.
5. 5
   Shared playhead

   Track-mode camera keys are captured and inspected at this time.

Product UI verification

The camera labels plus the manual/Object/Draw source states and blocking-overlap state were checked in the real local Desktop editor at 1440 × 1000 on 27 July 2026. Mobile Lite uses a focused camera sheet over the same scene data. It is not a documentation-only canvas.

Start with Use camera moves and path following for a task-based workflow, then use this page for the deeper model and reference.

---

Table of Contents

1. Overview
2. Camera Modes
3. Authoring Surfaces and Precedence
4. Camera Pose
5. Camera Keyframes
6. Camera Bookmarks
7. Follow Modes
8. Generated Camera Framing
9. Scene Transitions
10. UI Controls
11. Coordinate System
12. Best Practices
13. Troubleshooting

---

Overview

The camera system controls what viewers see in your animation. Think of it as a virtual camera pointing at an infinite canvas — you can pan, zoom, and animate the view to guide your audience through the content.

Key Concepts

Concept	Description
World Space	The infinite project-coordinate canvas where objects exist
Viewport	Your editing view; it can pan and zoom without automatically changing exported framing
Camera	The virtual window that viewers see during playback and export
Camera Pose	A snapshot containing X, Y, zoom, and optional rotation
Scene Camera	A saved pose used for scene playback/export and authored from the Camera drawer
Frame Overlay	The visible export area defined by project dimensions
Camera Track	A time-ordered sequence of poses interpolated into animated moves
Bookmarks / Camera Shots	Named, reusable poses for consistent framing

---

Camera Modes

The camera system supports four distinct modes:

Mode Comparison

Mode	Movement	Use Case	Requirements
Fixed Scene Camera	None	Title cards, static diagrams	A saved viewport
Track	Authored	Manual, Object Camera, and Draw-step Camera actions	One key can hold a pose; two different poses create visible movement
Follow Hand	Dynamic	Drawing animations	Active hand follower
Follow Object	Dynamic	Character tracking	Target object selected

---

Fixed Scene Camera mode

Camera stays fixed for the entire scene duration.

Use it for title cards, static diagrams, single-shot explainers, and scenes whose important content does not move outside one framing.

How to set it:

1. Open the timeline's CAMERA drawer.
2. Choose Fixed Scene Camera.
3. Pan and zoom the editor viewport to the desired framing.
4. Choose Save View.
5. Use Jump to View to verify the stored pose.
6. Choose Update View after changing the framing, or Remove to clear it.

---

Track Mode

Camera animates between keyframes over time.

For example, a four-key move can start with a wide shot at zoom 0.5, pan to an object near X 500, zoom in to 2.0, and return to zoom 1.0. The runtime interpolates between those authored poses.

1234

Track mode exposes manual-key controls and the live state at the shared playhead. This empty project correctly reports that no key is active.

Screenshot callouts

1. 1
   CAMERA drawer

   Camera authoring remains attached to the real project timeline.
2. 2
   Track actions

   Add a pose at the playhead or restrict authoring to zoom-only changes.
3. 3
   Camera Summary

   Confirms that Track is the active mode.
4. 4
   Current at Playhead

   Reports the active key, segment, position, and zoom at the sampled time.

How to set it:

1. Select Track in Camera Mode.
2. Move the playhead to the start time.
3. Frame the canvas and choose + Add @ Playhead.
4. Move the playhead to the next time.
5. Frame it differently and choose + Add @ Playhead again.
6. Repeat only for the poses the move needs.
7. Play to preview the camera move.

---

Follow Hand Mode

Camera automatically follows the drawing hand position.

123

Follow Hand is a runtime follow mode; manual camera keys remain available only in Track mode.

Screenshot callouts

1. 1
   Camera Mode

   Follow Hand is selected in the real drawer.
2. 2
   Active-mode summary

   The summary confirms which camera source will be evaluated.
3. 3
   Follow behavior

   The drawer explains that the camera samples the drawing hand during playback.

Requirement	Result
A hand follower exists on an active drawable path	The camera can sample the drawing-hand position
The hand is actively drawing during playback	The camera follows with built-in smoothing
No eligible active hand exists	The camera cannot follow the hand and remains at the fallback scene framing

Best For:

• Long horizontal/vertical drawings
• Whiteboard reveals
• Flowchart animations
• Educational step-by-step content

---

Follow Object Mode

Camera tracks a specific object's position.

123

Follow Object requires an explicit target from the active scene. The empty fixture correctly shows that no object can be chosen yet.

Screenshot callouts

1. 1
   Camera Mode

   Follow Object is selected in the real drawer.
2. 2
   Active-mode summary

   The summary confirms that Follow Object is active.
3. 3
   Target Object

   Choose a scene object before previewing; an empty scene has no eligible target.

The camera centers on the target's current position, maintains the scene camera zoom, and uses smoothing so movement can lag slightly instead of snapping.

Best For:

• Character following
• Moving object tracking
• Path animations
• Interactive elements

---

Authoring Surfaces and Precedence

The four options above are the only scene camera modes. Object Camera and Draw-step Camera are generated actions inside Track, not additional modes.

Authoring surface	Scope	Source editor	Runtime requirement	Key-table badge
CAMERA drawer	Whole scene	Timeline → CAMERA	The selected mode decides what runs; manual keys require Track	M for manual keys
Object Camera	One eligible non-drawable object	Selected object → Properties → Object Camera	Track	O
Draw-step Camera	One configured drawing step	DRAW → expanded step → Camera	Track	D

1234

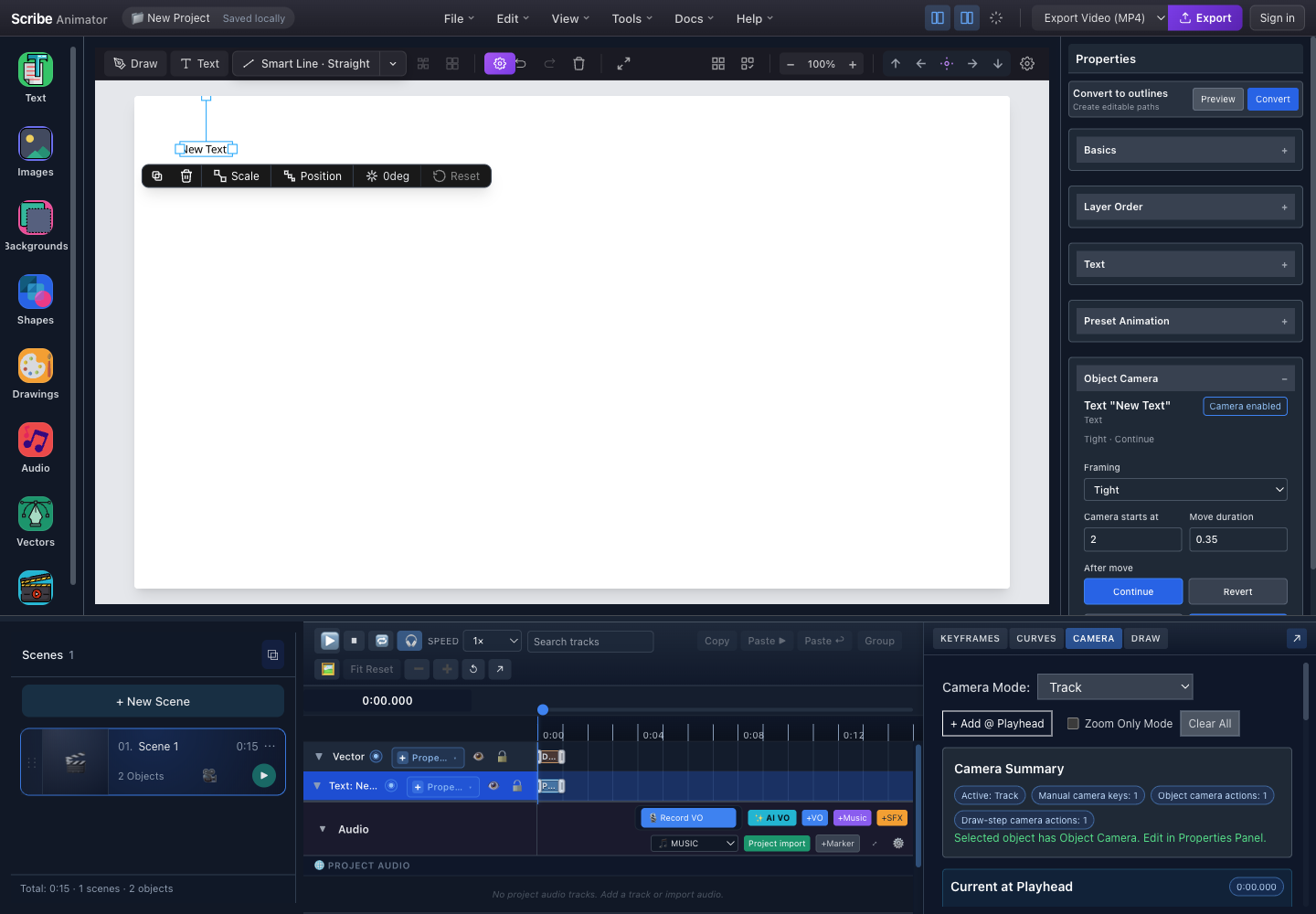

The Camera drawer coordinates one Track while each generated action remains editable at its owning object or drawing step.

Screenshot callouts

1. 1
   Object source editor

   The selected text owns and edits the Object Camera action in Properties.
2. 2
   Track mode

   All three authored source types run only while Track is the active scene mode.
3. 3
   Source counts

   Manual, Object Camera, and Draw-step Camera actions are reported separately.
4. 4
   Shared timeline

   Every source resolves against the same scene-local ruler and playhead.

Mode and source precedence

1. A scene stores one active cameraMode.
2. Fixed Scene Camera uses one saved pose.
3. Track samples the shared, time-sorted keys generated by manual, Object Camera, and Draw-step Camera authoring.
4. Follow Hand and Follow Object dynamically sample their live targets instead of the saved Track.
5. Switching away from Track preserves its actions but marks them inactive.
6. When a valid camera transition enters the scene, its opening blend temporarily takes precedence; after that, the active mode resumes.

Within Track, generated Object and Draw-step ranges are not allowed to silently compete:

Combination	Rule
Object Camera + Draw-step Camera overlap	Blocking in either direction; separate timing or remove one action
Manual key timestamp inside a generated range	Warning only; the manual key is preserved and can take priority
Exact end/start boundary	Allowed; touching boundaries are not an overlap
Multiple overlapping Object Camera actions	Can be grouped into a wider union framing
Adjacent Draw-step Camera actions	Ordered and constrained by the next configured action

Generated rows can be recreated from their saved source recipes. Edit O actions in Properties and D actions in the owning DRAW step. Clear All clears the current Track keys, not necessarily those source recipes.

Similar names are different systems

Object Camera is a bounded, timed Track action around captured object bounds. Follow Object is a live scene mode that continuously follows the target's evaluated position. Draw-step Camera frames one drawing step; Follow Hand continuously follows the active hand.

See How the camera systems interact for the complete decision guide, annotated source table, conflict screenshot, and recovery workflows.

---

Camera Pose

A camera pose defines the exact view configuration:

interface Camera {
  x: number;        // World center X (project coordinates)
  y: number;        // World center Y (project coordinates)
  zoom: number;     // Zoom level: 1 = default, >1 = zoom in, <1 = zoom out
  rotation?: number; // Rotation in degrees, 0 by default
}

Example pose:

Value	Example	Interpretation
X	960	Horizontal world-space center
Y	540	Vertical world-space center
Zoom	1.5	150% view, zoomed in
Rotation	0	No camera rotation

Zoom Levels

Zoom Value	Meaning	Use Case
0.1	10% (min)	Extreme wide shot
0.5	50%	Wide establishing shot
1.0	100% (default)	Normal view
2.0	200%	Close-up
5.0	500%	Extreme detail
10.0	1000% (max)	Maximum zoom

[!tip] Zoom Limits The camera system enforces zoom limits: min 0.1 (10%) to max 10.0 (1000%). These prevent accidentally losing your content or zooming to unusable levels.

---

Camera Keyframes

Keyframes define camera poses at specific times in Track mode:

interface CameraKeyframe {
  time: number;              // Scene-local time in milliseconds
  x: number;                 // Camera center X
  y: number;                 // Camera center Y
  zoom: number;              // Zoom level
  rotation?: number;         // Optional rotation (degrees)
  easing?: CameraKeyframeEasing; // Transition curve
}

An example Track sequence:

Key	Time	X	Y	Zoom	Easing
1	0 ms	960	540	1.0	linear
2	2000 ms	500	300	1.5	ease-in-out
3	4000 ms	1200	600	0.8	ease-out
4	6000 ms	960	540	1.0	ease-in-out

Use + Add @ Playhead to capture the current framing and Clear All only when you intend to remove the whole editable camera track.

Easing Functions

Easing	Description	Best For
linear	Constant speed	Technical movements
ease-in	Starts slow	Beginning of attention shift
ease-out	Ends slow	Settling on target
ease-in-out	Slow both ends	Natural camera moves
ease-in-cubic	Slower start (cubic)	Dramatic reveals
ease-out-cubic	Slower end (cubic)	Gentle arrivals
ease-in-out-cubic	Cubic ease both	Cinematic moves

---

Camera Bookmarks

Bookmarks (Camera Shots) let you save and reuse camera poses:

interface CameraBookmark {
  id: string;           // Unique identifier
  name: string;         // User-friendly name
  camera: Camera;       // The saved camera pose
  isHome?: boolean;     // Is this the default/home shot?
  thumbnail?: string;   // Optional preview thumbnail
  createdAt?: number;   // Creation timestamp
}

Each saved shot shows its name and stored pose. A shot can also be marked as the home framing and can carry an optional thumbnail.

Shot action	Result
Apply	Set the scene camera to the saved pose
Add as Track key	Insert the saved pose at the current playhead in Track mode
Set Home	Make the shot the default scene camera
Rename	Give the shot a clearer reusable name
Delete	Remove the bookmark without deleting scene objects

Bookmark Workflow

1. Save a Shot: Frame your view, enter name, click + Save Shot
2. Apply a Shot: Click Apply to jump camera to saved pose
3. Add to Track: Click + KF to add bookmark as keyframe at current time
4. Set as Home: Click Set Home to make it the default starting camera

[!tip] Using Bookmarks in Track Mode Bookmarks work great with Track mode! Save key framing positions as bookmarks, then add them as keyframes at specific times to build your camera animation.

---

Follow Modes

Follow Hand Configuration

1. Select Follow Hand.
2. Confirm that the status detects a hand follower.
3. Verify that an eligible object has hand following enabled on an active drawing path.
4. Confirm that the scene contains draw steps at the previewed time.
5. Preview the scene. The mode retains the current scene camera zoom and applies built-in smoothing, so the camera can trail the hand slightly.

Follow Object Configuration

1. Select Follow Object.
2. Choose the intended target from the active scene. Eligible targets can include text, SVG, shape, and SVG-path objects.
3. Preview the object's complete movement.
4. Confirm that the camera remains centered on the target, retains the scene zoom, and follows with exponential smoothing.
5. If the selector is empty, add or select an eligible object in the active scene before retrying.

---

Generated Camera Framing

Object Camera and Draw-step Camera use the same current framing choices:

Framing	Bounds padding	Visual result	Typical use
Tight	12%	Closest generated shot	One label, icon, or small path detail
Medium	28%	Balanced subject plus context	Most explanatory focus moves
Wide	50%	More surrounding scene context	Establishing a region or preparing the next action

Scribe fits the relevant bounds into the project frame and clamps the generated zoom to a practical 0.25–3.0 range. Aspect ratio, source bounds, edge proximity, and project dimensions still affect the composition, so preview every generated shot.

Source	Bounds used
Object Camera	The selected object's current approximate bounds captured when Add/Update is applied
Draw-step Camera	The owning step's path or revealed path range when available, otherwise the drawable object's bounds

Both editors also expose:

• a scene-local start or step-relative start offset;
• move duration from 0.1 to 2 seconds;
• Continue to retain the generated framing until a later Track action;
• Revert to hold and then return toward the prior framing; and
• Add/Update/Remove actions plus Track-mode and overlap validation.

The current UI does not use the legacy Focus, Hero, Side, Detail, or Context buttons.

---

Scene Transitions

Configure how camera blends between scenes:

interface SceneCameraTransition {
  durationMs: number;        // Transition duration in milliseconds
  easing: CameraKeyframeEasing; // Transition easing
  enabled: boolean;          // Whether transition is active
}

With the transition enabled, Scribe blends from the previous scene's end pose to the next scene's start pose. The reference defaults are 500 ms, ease-in-out, and enabled; always use the values shown in the current scene controls when they differ.

Transition Behavior

Scenario	Behavior
Previous-end and current-start poses both resolve	Camera blends from the previous end pose to the current start pose for the configured opening duration
Either endpoint cannot resolve	No entry blend is synthesized; the current scene continues with its active camera mode or fallback
Transition duration completes	The current scene's Fixed, Track, Follow Hand, or Follow Object mode resumes full control

---

UI Controls

The editor viewport and the authored camera are intentionally separate. Use ordinary canvas pan, zoom, focus, and reset controls to compose the authoring view. Save viewer-facing camera state in the CAMERA drawer.

Current area	Visible controls and purpose
Canvas viewport	Pan, zoom, fit/focus, and reset the editor view without automatically changing project camera data
Camera Mode	Choose Fixed Scene Camera, Track, Follow Hand, or Follow Object
Camera Summary	Check active sources, manual keys, object/draw-step actions, overlaps, bookmarks, and scene transition state
Fixed mode	Save View, Update View, Jump to View, and Remove
Track mode	+ Add @ Playhead, Zoom Only Mode, current-at-playhead values, M/O/D key provenance, and Clear All
Object Camera	Select an eligible non-drawable object, then edit framing and timing in Properties → Object Camera
Draw-step Camera	Expand the owning step in DRAW, then edit its Camera area; Properties is read-only
Follow modes	Resolve and validate the hand or object target before preview
Camera shots	Save a named bookmark, apply it to a scene, add it as a Track key, set a home shot, rename, or delete
Scene transition	Enable Camera Transition from Previous Scene, then set duration and easing

The camera engine accepts zoom values from 0.1 to 10, but usable framing also depends on project dimensions, viewport size, source resolution, and edge clipping. Do not treat an old diagram's percentage range as the current authoring limit.

---

Coordinate System

Understanding world vs screen coordinates:

Coordinate space	Origin and units	Camera relationship
World / project	Project (0, 0) in project pixels	Independent of the current zoom
Screen / viewport	Viewport (0, 0) in screen pixels	Changes with camera position and zoom

screenToWorld(screenX, screenY, camera, viewport) converts a pointer position into project coordinates. worldToScreen(worldX, worldY, camera, viewport) converts a project point into viewport coordinates.

The forward transform is:

• screenX = viewportCenterX + (worldX - cameraX) × zoom
• screenY = viewportCenterY + (worldY - cameraY) × zoom

World Group Transform

// Used to apply camera to Konva canvas
interface WorldGroupTransform {
  x: number;        // Viewport center X
  y: number;        // Viewport center Y
  offsetX: number;  // Camera center X
  offsetY: number;  // Camera center Y
  scaleX: number;   // Camera zoom
  scaleY: number;   // Camera zoom
  rotation: number; // Camera rotation
}

---

Best Practices

Camera Animation

Prefer	Avoid
Ease-in-out for natural moves	Linear easing for every move
Smooth motion matched to the content	Sudden jumps or mismatched speed
Testing on different viewport sizes	Testing only one editor zoom
Reusable bookmarks for consistent framing	Recreating every pose by eye
Planned keyframes with a clear purpose	Random or redundant camera keys

Move	Starting timing guideline
Quick pan	300 to 500 ms
Standard move	500 to 1000 ms
Slow reveal	1500 to 2500 ms
Scene transition	300 to 500 ms

Avoid changing zoom by more than 2× in one move, keep important content visible throughout the span, and test both zoom extremes before finalizing.

Common Patterns

Pattern	Mode	Description
Static Explainer	Fixed Scene Camera	Single framing for entire scene
Pan & Zoom	Track	2-4 keyframes for movement
Follow Reveal	Follow Hand	Camera tracks drawing action
Object Focus Sequence	Track + Object Camera	Timed generated shots around eligible objects
Draw Detail Sequence	Track + Draw-step Camera	Step-owned framing across a drawable
Intro → Detail → Outro	Track	Three-shot pattern

---

Troubleshooting

Common Issues

Issue	Checks and recovery
Camera does not move during playback	Check Camera Mode and Camera Summary. Fixed mode needs a saved view; Track needs at least two keys; Follow modes need an eligible active target.
Saved Object/Draw actions do not run	Switch back to Track. Fixed and Follow modes preserve generated actions but leave them inactive.
Object Camera is missing for a selection	Drawable paths use Draw-step Camera instead. For current Properties authoring, select eligible text, image, static SVG, or shape content with usable bounds.
Draw-step Camera is read-only in Properties	Expand the owning drawing step in the DRAW drawer; the Properties card is status-only.
Add/Update Camera is disabled	Confirm Track mode, valid owner bounds, valid timing, and no blocking Object-versus-Draw-step overlap.
Generated keys return after Clear All	Remove the Object Camera recipe in Properties or the Draw-step Camera recipe in DRAW; Clear All only clears the current Track keys.
Object Camera does not follow continuously	Use Follow Object. Object Camera is a bounded Track action based on captured bounds.
Objects disappear during zoom	Check whether they are outside the camera viewport, reduce extreme zoom, recenter X/Y on the content, then use Fit All to recover the authoring view.
Camera movement is jerky	Add only the keys needed to shape the path, use ease-in-out instead of linear where appropriate, remove duplicate-time keys, and reduce the zoom change between adjacent keys.
Follow mode does not work	For Follow Hand, verify the scene's active hand follower and draw step. For Follow Object, select an eligible target. In both cases, confirm that the target actually moves during playback.
Scene transition looks wrong	Configure both endpoint cameras, lengthen an overly short duration, adjust easing, and verify the previous end pose and next start pose.

Input and shortcut note

Camera authoring is exposed through visible canvas and CAMERA drawer controls. The current editor does not list camera-specific shortcuts in Help → Keyboard Shortcuts. Pointer gestures can vary by browser, operating system, and active tool, so use the visible pan, zoom, fit, save, jump, and reset actions when a gesture is intercepted.

---

Summary

Capability	Purpose
Fixed Scene Camera	Hold one saved view for the entire scene
Track	Animate camera poses over time
Follow Hand	Track the active drawing hand
Follow Object	Track a selected scene object
Camera pose	Define the exact view with X, Y, zoom, and rotation
Keyframes and seven easing functions	Control when and how Track-mode moves interpolate
Object Camera	Generate a timed Track shot around one eligible non-drawable object
Draw-step Camera	Generate step-owned Track framing from drawable path/reveal bounds
Bookmarks / Camera Shots	Save poses, reuse framing, and add poses as Track keys
Tight, Medium, and Wide framing	Fit generated Object/Draw-step actions with 12%, 28%, or 50% bounds padding
Scene camera transition	Blend framing between adjacent scenes
