Import SVG and vector artwork

Vector Import has two input paths that meet at one preview-and-placement workflow:

• SVG intake sanitizes existing vector markup, resolves its geometry, and extracts drawable paths.
• Raster tracing converts pixels from PNG, JPEG, WebP, GIF, BMP, or TIFF into vector paths.

Use an existing SVG when possible. Trace a raster only when you genuinely need vector geometry or a draw reveal; tracing does not add missing detail, and complex images can create a large number of paths.

Activeuserdesktopmobile20 minutes

Verified against frontend@2.0.0

Choose the right workflow

Source and goal	Best workflow	Why
Clean logo or illustration already supplied as SVG	Import the SVG	Preserves existing vector geometry and usually produces the smallest, cleanest result
Flat raster logo or high-contrast line art	Raster trace	Converts clear pixel regions into usable vector paths
Photograph that only needs to appear on screen	Add as a normal image	Tracing a photo is slow, visually noisy, and rarely useful for drawing animation
Animated GIF that should retain its source reveal behavior	Raster/GIF intake	The import flow retains original GIF bytes for supported reveal playback
SVG with SMIL or CSS animation	Export a static SVG first	Animated SVG markup is deliberately rejected
Compressed .svgz	Decompress to plain .svg	The lower-level intake can recognize SVGZ, but the current visible Desktop chooser does not advertise it

Orient yourself in Vector Import

12345

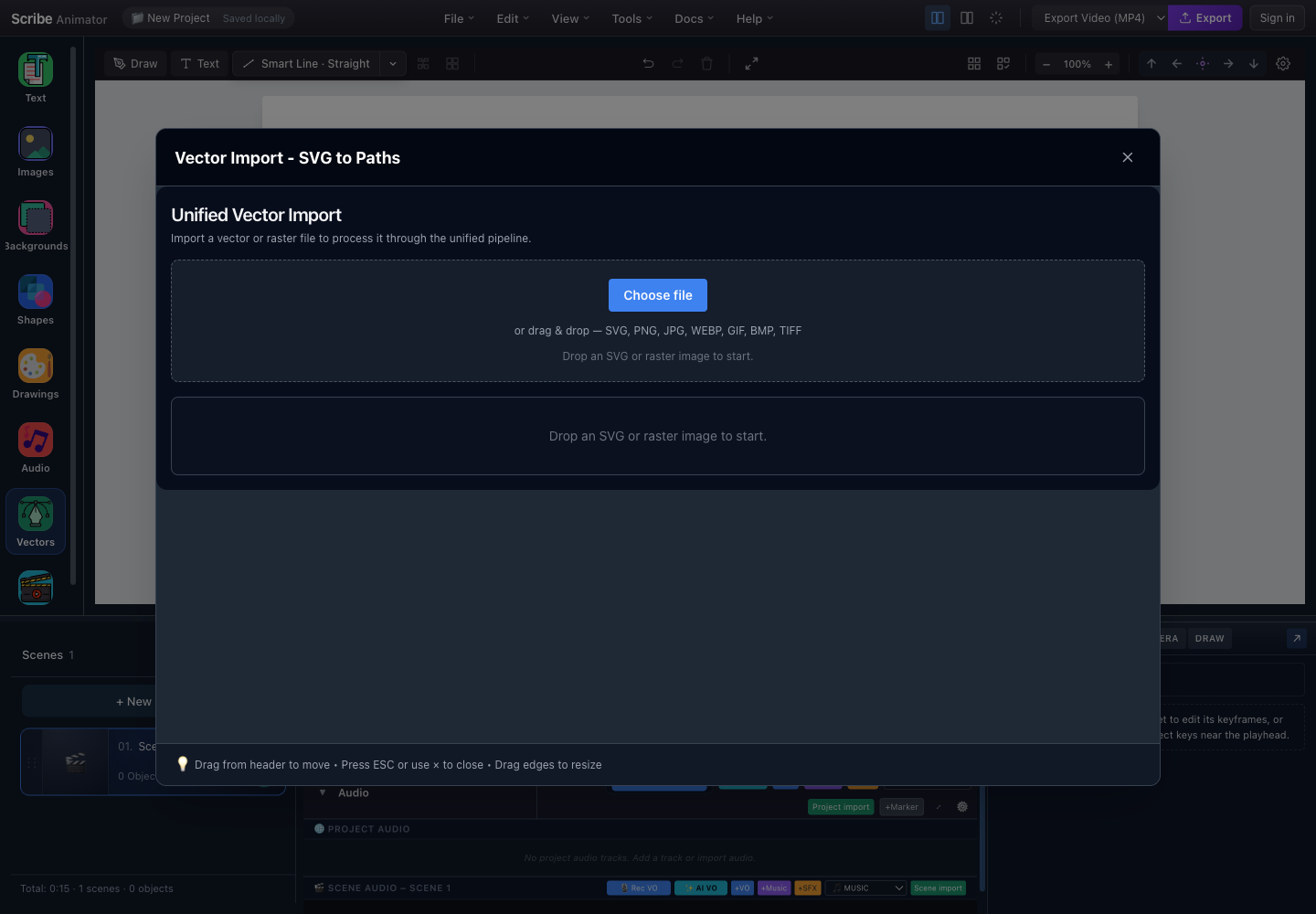

The same modal accepts static SVG files and the raster formats listed beneath the drop zone.

Screenshot callouts

1. 1
   Vector Import modal

   A movable and resizable workspace for file intake, processing controls, warnings, and placement.
2. 2
   Choose file or drop zone

   Select a local file or drag it into the highlighted intake region.
3. 3
   Current accepted formats

   The UI lists SVG, PNG, JPG, WEBP, GIF, BMP, and TIFF.
4. 4
   Preview and result area

   After processing, use this area to inspect visual fidelity, warnings, path statistics, and output choices.
5. 5
   Close

   Close the modal without adding the current result.

Supported inputs and important caveats

The current Desktop chooser explicitly lists:

• SVG;
• PNG;
• JPG/JPEG;
• WebP;
• GIF;
• BMP; and
• TIFF.

SVGZ is a guarded intake capability, not a visible picker promise

The lower-level intake gateway recognizes .svgz and applies safety checks, including a 20 MB expanded-size limit and rejection of multi-member gzip files. The current Desktop Vector Import chooser does not advertise .svgz, and browser support for decompression can vary.

For a reliable end-user workflow:

1. decompress the file locally;
2. verify that it becomes one plain, static SVG;
3. import the .svg; and
4. inspect the sanitized preview.

Do not rename .svgz to .svg; that changes only the filename, not the compressed content.

Workflow A: import a static SVG

Use this path for icons, logos, diagrams, line art, or exported illustrations.

1. Pause playback.
2. Open Vector Import.
3. Choose or drop a plain .svg file.
4. Wait for sanitization, parsing, normalization, and path extraction.
5. Read every warning.
6. Inspect the preview:
   • confirm the artwork is not blank or clipped;
   • check the aspect ratio;
   • verify fills and strokes;
   • check whether text was already converted to paths; and
   • confirm the number of extracted paths is reasonable.
7. Choose the intended output behavior.
8. Add the result to the canvas.
9. Select the new object and verify its placement in the active scene.
10. Preview the scene before saving or exporting.

Expected result: the canvas receives normalized vector object data rather than executing the original SVG document as an interactive webpage.

Static really means static

Vector Import rejects SVG animation expressed through:

• SMIL elements such as <animate> and <animateTransform>; or
• CSS animation rules.

Export one representative frame from the authoring tool and import that static SVG. Recreate motion with Scribe's timeline and animation commands.

Workflow B: trace a raster image

Use a source with:

• a plain or removable background;
• strong contrast;
• large, clearly separated shapes;
• limited texture; and
• enough resolution to define the edges.

Avoid small screenshots, noisy photos, compression artifacts, hairline details, and soft shadows unless those details are essential.

1. Open Vector Import and choose a supported raster file.
2. Wait for decode and preprocessing. The pipeline can classify the source, resize it, denoise it, remove a background, auto-trim it, and encode an intermediate image.
3. Choose a trace mode:
   • Monochrome / B&W for signatures, line art, and high-contrast marks;
   • Color for flat illustrations with a limited palette.
4. Adjust only the controls needed for the source:
   • Threshold (0–255) changes which pixels belong to the B&W result;
   • Color layers (1–16) controls palette segmentation in color mode;
   • Curve fit changes how closely paths follow curves;
   • Corner sensitivity preserves or smooths sharp changes; and
   • Speckle filtering removes small isolated regions.
5. Run or refresh processing.
6. Compare the preview with the source at both fit-to-view and a closer scale.
7. Read path count and warnings. More paths are not automatically better.
8. Select the intended output, including SVG Reveal when the reveal behavior is the goal.
9. Add the result to the canvas.

Expected result: one or more vector paths reproduce the important structure of the raster. Fine texture may be intentionally simplified.

Change one control at a time

Start with the default or balanced settings. Change one value, reprocess, and compare. Moving threshold, speckle, corners, and curve fit together makes it hard to identify what improved—or damaged—the result.

Decide between graphic placement and drawing behavior

A valid vector does not automatically make a good hand-drawn animation.

Use a normal graphic-style placement when:

• exact filled appearance matters more than stroke order;
• the art contains many filled regions;
• reveal timing would be distracting; or
• the path count is high.

Use drawing/reveal behavior when:

• the source is naturally stroke-like;
• the audience benefits from seeing the idea constructed;
• path order can be made meaningful; and
• the full reveal fits inside the scene duration.

After placement:

1. select the imported object;
2. open its draw or SVG-path controls;
3. confirm that drawable paths exist;
4. run automatic stroke planning as a starting point;
5. remove or reorder unhelpful draw steps;
6. select the appropriate hand and tool; and
7. preview from before the first draw step through the completed result.

Save to the SVG library—or keep it only in the project

Adding the processed result to the canvas and saving it to the cloud SVG library are separate actions.

• A processed result can be added to the current canvas without being saved to the cloud library.
• Save SVG to cloud library is currently a Pro capability.
• The cloud-library save path enforces a 3 MB SVG limit.
• A result over that library limit can still be added to the canvas when the editor has successfully processed it.

Use cloud save only for artwork you expect to reuse. Avoid filling the library with one-off traces or near-duplicate experiments.

Security model

Imported SVG is treated as untrusted markup.

• Dangerous elements and event attributes are removed during sanitization.
• External scripts are not executed.
• Animated SVG constructs are blocked rather than handed through.
• Geometry is parsed and converted into Scribe object/path data.
• Missing or unusual sizing information can generate warnings; a file that opens in a browser is not automatically a valid editor asset.

This means web-page features embedded in an SVG—scripts, external interactions, or CSS animation—are not preserved. That is intentional.

Limits and offline behavior

• Local SVG sanitization, parsing, raster preprocessing, and bundled worker processing can run without a cloud connection after the required application code and assets are available.
• Cloud-library saving requires its entitlement, authentication, and network service.
• A worker can be unavailable in a restricted browser or environment. The UI reports that failure instead of pretending a trace succeeded.
• SVGZ decompression depends on environment support and is guarded by expanded-size and gzip-structure limits.
• Huge raster dimensions can exhaust browser memory even when the compressed file is small.
• Very detailed traces increase project size, selection cost, render work, stroke-planning work, and preview time.
• Styling that depends on an external stylesheet cannot be relied upon after sanitization. Export self-contained fills, strokes, transforms, and geometry.

Desktop and Mobile Lite differences

Task	Desktop	Mobile Lite
Entry point	Movable/resizable Vector Import panel	Assets → Vectors / import flow
Current chooser wording	Lists SVG, PNG, JPG, WEBP, GIF, BMP, TIFF	Uses the Mobile Lite vector-import adapter and device picker
Place versus draw	Choose output in the import/asset workflow	Explicit Add as Graphic and Add as Drawing actions
Advanced inspection	Larger preview and tracing controls	Compact, touch-oriented controls and summaries
Cloud SVG save	Pro, max 3 MB	Same Pro cloud-library policy surfaced through Mobile Lite
Local processing	Browser pipeline/worker	Same underlying processing bridge through Mobile Lite adapters

Both surfaces ultimately need a current project and an active scene. Pause playback before inserting or editing imported content.

Verify the result

Before continuing, check:

• the result exists in the intended scene;
• its bounds and aspect ratio match the preview;
• colors and transparency are acceptable;
• the path count is appropriate for the visual;
• the object can be selected and transformed;
• draw steps exist only when you intended a drawing;
• the reveal finishes before the scene ends; and
• closing and reopening the project does not lose required source assets.

Troubleshooting and recovery

Symptom	Likely cause	Recovery
File picker does not show SVGZ	The current visible chooser does not advertise compressed SVG	Decompress to one plain .svg and import that
“Animated SVG is not supported”	SMIL or CSS animation was detected	Export a static SVG frame, then animate it in Scribe
Blank preview	Missing/invalid dimensions, no extractable geometry, unsupported constructs, or all content removed by sanitization	Add a valid viewBox, flatten the artwork, convert text to paths, and export a self-contained static SVG
Wrong colors	The file depends on external CSS, inherited styles, or unsupported effects	Expand/flatten appearance in the source tool and use explicit fills/strokes
Raster will not decode	Unsupported, mislabeled, or corrupt image data	Re-export as PNG, JPEG, or WebP and retry
Worker unavailable	The browser or environment cannot start the processor	Reload once, try a supported modern browser, or import an already prepared SVG
Too many paths	Source detail, noise, or too many color layers	Increase speckle filtering, reduce layers, simplify/resize the source, or add it as a graphic
Corners look rounded	Curve/corner settings are too smooth	Increase corner preservation and compare again
Curves look jagged	Threshold/noise or curve fit is too aggressive	Clean the source, adjust threshold, and use a smoother curve fit
Draw order feels random	Visual path order is not narrative stroke order	Re-plan, then manually reorder or remove important steps
Save-to-library is disabled	No Pro entitlement, no account/network, or result exceeds 3 MB	Add to canvas only, sign in with the required entitlement, or simplify the SVG
Canvas result differs from preview	Placement scale, clipping, or selected output behavior changed	Undo, reopen import, confirm the preview/output, and add again
