Add images, assets, and backgrounds

Images can play two very different roles in Scribe Animator:

• an image object belongs to a scene, can be selected and transformed, and can participate in the timeline; or
• a background sits behind scene content and establishes the board or visual environment.

Choose the role before importing. It is much easier than rebuilding a background object—or replacing a background with an object—after timing and layout are complete.

Activeuserdesktopmobile18 minutes

Verified against frontend@2.0.0

What to use, when, and why

Need	Use	Why
Reuse an image already saved to your account	Images library	Search, type filters, recents, and favorites make repeated placement faster
Place a file from the current device	Local image import / Advanced Image	Does not require the file to exist in the private library first
Keep the image as a normal visual layer	Add as Graphic	Best for photos, logos, screenshots, and artwork that should appear as one object
Turn artwork into drawable vector paths	Add as Drawing	Runs the SVG or raster-to-vector path workflow needed for draw reveals
Use one visual treatment throughout the project	Project background	Every scene inherits one consistent board unless it has an override
Give one scene a different environment	Scene background	Creates a local override without changing the rest of the project
Animate, crop, transform, or time a “background”	Add it as an image object	A canvas background is not a normal selectable timeline object

Start with the least destructive choice

For uncertain artwork, add it as a graphic first. Raster tracing can create many paths, while a normal image remains lightweight and visually faithful.

Understand the Images library

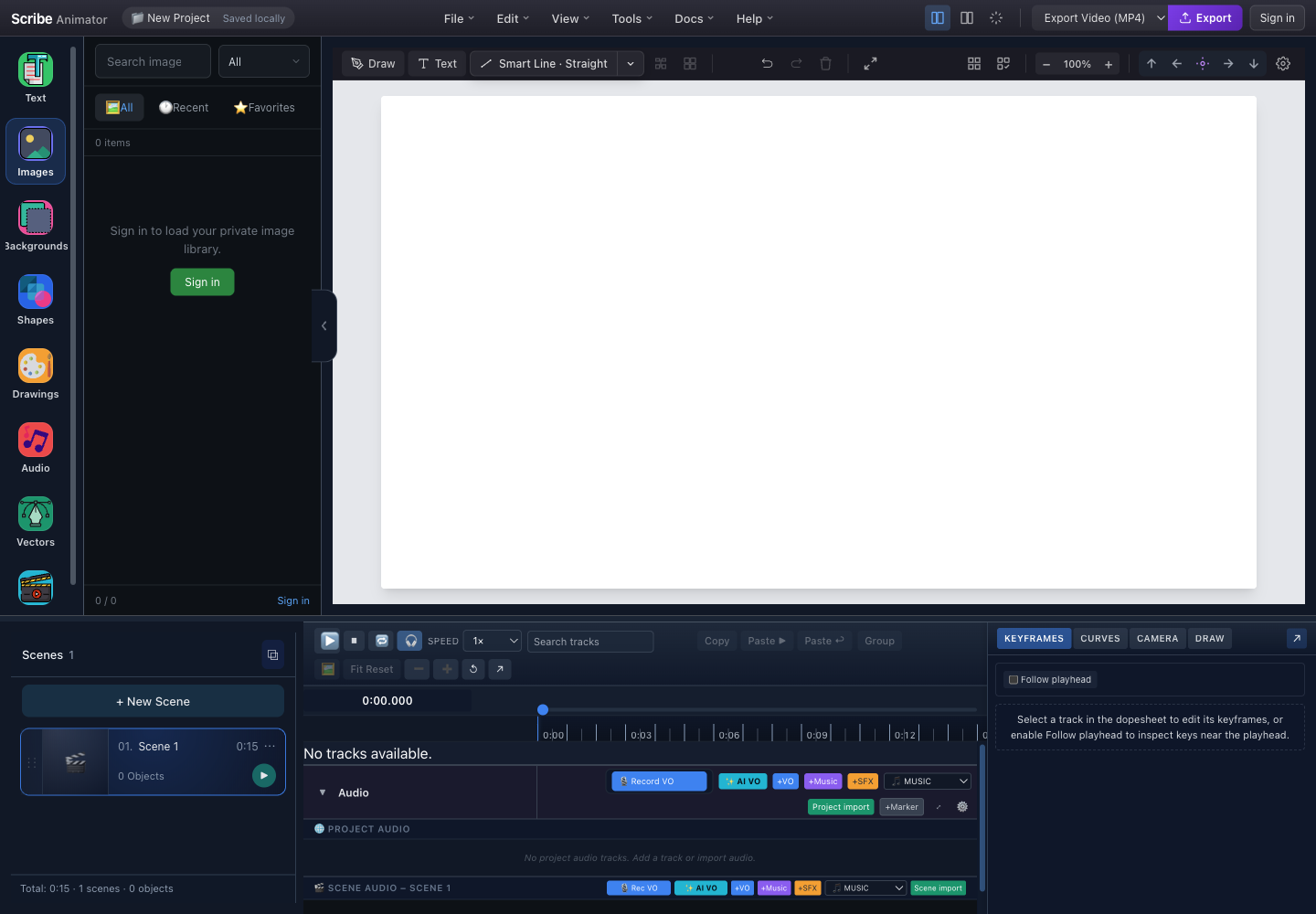

The screenshot below shows the Desktop Images surface before an account library has been loaded.

1234

The private library and the local-file workflow are related, but they are not the same thing.

Screenshot callouts

1. 1
   Images tool

   Opens saved raster and SVG assets without leaving the editor.
2. 2
   Search and kind filter

   Search by asset name, then narrow the results to all items, raster images, or SVGs.
3. 3
   All, Recent, and Favorites

   All shows the library; Recent records recently used items; Favorites keeps frequently reused assets close.
4. 4
   Account-backed empty state

   Sign in only when you want to load the private image library. Local device import remains a separate workflow.

What each library state means

• All is the complete currently loaded library.
• Recent is device-local usage history and is useful when assembling several scenes from the same visual set.
• Favorites are device-local while signed out and can sync to the signed-in account.
• 0 items is not an import failure when you are signed out; it means the private library was not loaded.
• Sign in loads account-owned media. It is not required merely to place a local file into a local project.

Workflow A: add a saved library image

Use this when the image already exists in your Scribe image or SVG library.

1. Pause playback if the project is currently playing.
2. Open Images.
3. Select All, Recent, or Favorites.
4. Use the kind filter if you specifically need a raster image or an SVG.
5. Search using the asset name or a distinctive keyword.
6. Select the thumbnail and review the larger choice prompt.
7. Choose:
   • Add as Graphic to place the original visual as a normal scene object; or
   • Add as Drawing to create drawable paths.
8. Select the placed object on the canvas.
9. Move it into position and resize from a corner when you want to preserve its proportions.
10. Preview the scene and confirm that the object appears at the intended time.

Expected result: a new, selected object appears in the active scene. Choosing Drawing may take longer and can produce multiple paths; choosing Graphic preserves the source appearance.

Workflow B: add a local image

Use local import for a new photo, logo, exported slide, or screenshot that has not been saved to the private library.

1. Confirm that a project and active scene exist.
2. Pause playback. Mobile Lite intentionally refuses media insertion while playback is active.
3. Open the image import route:
   • on Desktop, use the Advanced Image action exposed from the Images workflow;
   • on Mobile Lite, open Assets → Images and choose the device-file action.
4. Choose a supported file.
5. Wait for preprocessing. The pipeline decodes the source, inspects it, reduces it when required by the configured size limit, and emits an appropriate WebP, JPEG, or PNG result.
6. Place the processed image.
7. Check the canvas, selection, and timeline rather than relying only on a success message.

On Mobile Lite, an inserted image is centered and constrained to a maximum inserted dimension of 512 canvas units. Its initial animation is None, so it remains visible instead of unexpectedly animating.

Current format differences

Surface	Current local image choices
Mobile Lite image insertion	PNG, JPEG, WebP, GIF
Desktop custom background	JPEG, PNG, GIF
Mobile Lite custom background	PNG, JPEG, WebP
Vector Import	SVG plus a broader raster set; see Import SVG and vector artwork

These lists describe the current file pickers. A browser may still reject a damaged file even when its extension is listed.

What happens to local files

• Signed out: Mobile Lite preprocesses the file if needed and uses an isolated local blob URL. A cloud account is not mandatory for the edit.
• Signed in: Mobile Lite preprocesses the file, uploads it to the user library, and uses the returned served URL.
• Large source: the preprocessor attempts to reduce the file within the active media limit. If it cannot, the editor reports the failure instead of silently inserting an unusable asset.

Set a project or scene background

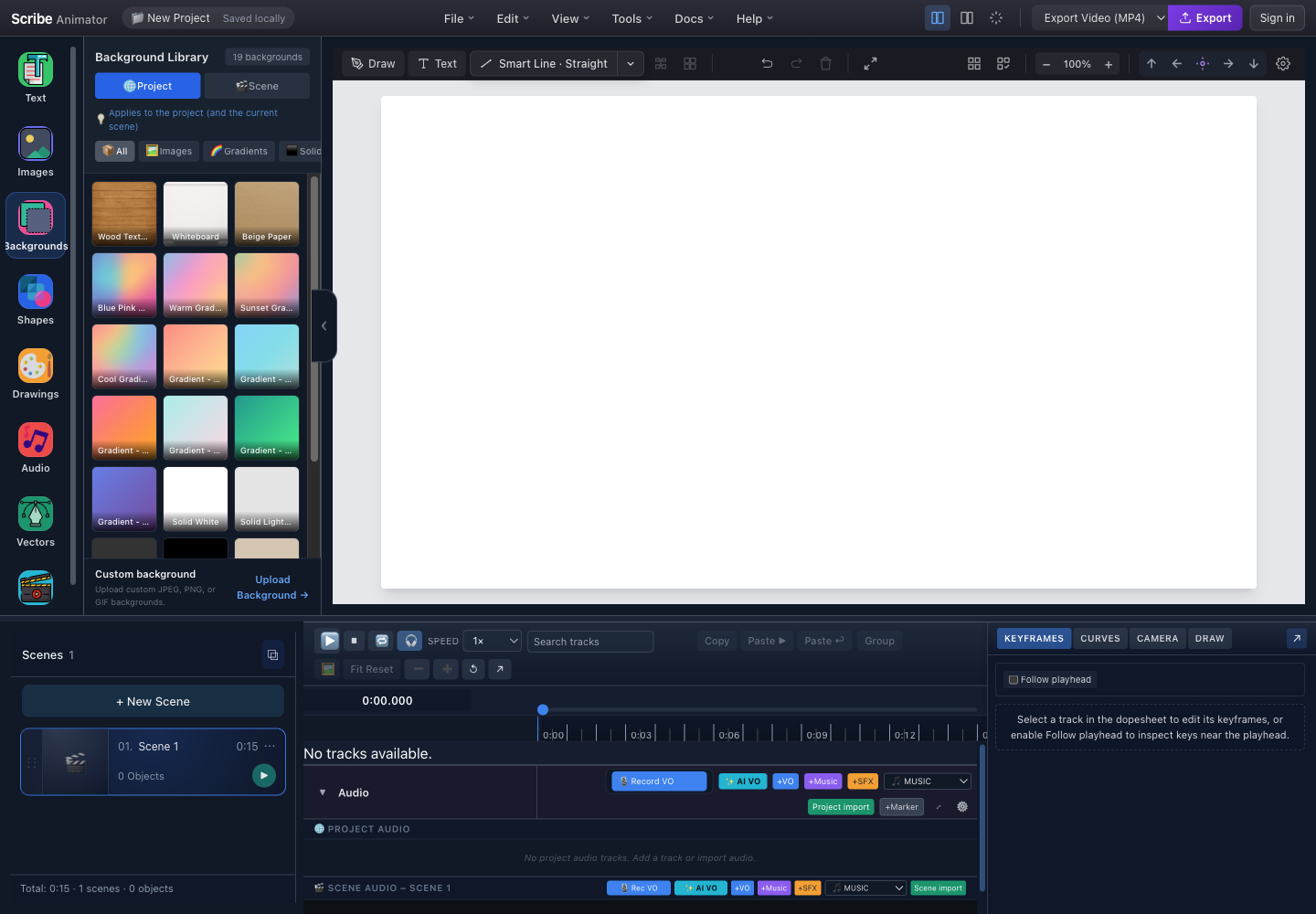

12345

Background choices apply immediately, so set the scope before selecting a tile.

Screenshot callouts

1. 1
   Project or Scene scope

   Project changes the shared background. Scene creates an override for only the active scene.
2. 2
   Background type filters

   Show all built-ins or narrow the grid to images, gradients, or solid colors.
3. 3
   Built-in background grid

   Selecting a tile applies it immediately to the chosen scope.
4. 4
   Custom background

   Upload a supported image when the built-in images, gradients, and solids do not fit the project.
5. 5
   Live canvas result

   Inspect the full composition after every change, especially when text contrast depends on the background.

Project scope

Use Project when most or all scenes should share one visual environment.

1. Open Background.
2. Select Project before choosing a tile.
3. Filter to Images, Gradients, or Solids, or remain on All.
4. Select a built-in background.
5. Inspect the active scene and at least one other scene.

The project background updates immediately. If the active scene already has a scene override, applying a project background from this panel clears that active-scene override so the change is visible immediately.

Scene scope

Use Scene for a deliberate visual break—for example, a title card, warning, chapter divider, or call to action.

1. Select the scene that should differ.
2. Open Background and choose Scene.
3. Select a background.
4. Move to another scene and confirm that it still uses the project background.
5. To remove the local difference, return to the scene and choose Use Project.

The Scene control is unavailable when no active scene exists.

Custom background upload

1. Choose Project or Scene first.
2. Expand Custom background and select Upload Background.
3. Choose a format supported by that editor surface.
4. Wait for automatic compression.
5. Confirm the image is applied to the intended scope.

Desktop stores the processed custom background as project data. Mobile Lite can use a local processed URL while signed out or a returned library URL while signed in.

Configure canvas size and board style

Background selection does not change the canvas aspect ratio. Set size separately in canvas or project settings.

Desktop canvas presets currently include:

• YouTube — 1920 × 1080;
• Square — 1080 × 1080;
• Vertical — 1080 × 1920;
• Widescreen — 2560 × 1080; and
• HD — 1440 × 1080.

You can also enter a custom width and height. Desktop board styles include whiteboard, dark and green chalkboards, glassboard, and custom color. Changes are live; close the settings with × or Esc when finished.

Changing size after layout

Canvas-size changes do not magically recompose every object for a new aspect ratio. Set the target format early, then inspect every scene after any later size change.

Verify the result

For an image object, confirm all of the following:

• it belongs to the intended scene;
• its proportions, crop, and placement are correct;
• it does not cover important text or controls;
• its timeline visibility matches the story beat; and
• preview and export framing match the canvas.

For a background, confirm:

• Project versus Scene scope is correct;
• text remains readable;
• a scene override was not unintentionally cleared;
• transitions between differently colored scenes are comfortable; and
• the image still looks acceptable at the export aspect ratio.

Limits, security, and offline behavior

• Media-size limits depend on the active application configuration or plan; the editor reports the effective limit when a file is too large.
• Image preprocessing reduces oversized sources but cannot repair corrupted image data.
• Private-library loading, favorites sync, and signed-in uploads require the relevant account and network services.
• Local placement can work without authentication. Built-in backgrounds and local preprocessing can work offline after the required application assets are available.
• Blob-backed local images belong to the local project/session environment. Do not assume they have been uploaded merely because they are visible on the canvas.
• Use trusted media. Image decoding is still performed by the browser, and unusually large dimensions consume memory even when the compressed file is small.
• A background is project or scene state, not a selectable object. Use a normal image object when you need animation, transforms, selection, or timeline control.

Desktop and Mobile Lite differences

Task	Desktop	Mobile Lite
Private image library	Search, kind filters, All/Recent/Favorites	Image library plus local device actions
Local placement	Advanced Image workflow	Assets → Images device-file workflow
Signed-out image	Local project use is available	Local processed blob URL
Signed-in image	Account library is available	Processed file uploads and uses returned URL
Initial placement	Place and transform in the canvas editor	Centered, max inserted dimension 512, animation None
Custom background formats	JPEG, PNG, GIF	PNG, JPEG, WebP
Background scope	Project/Scene library	Background tab with equivalent project/scene state

Troubleshooting and recovery

Symptom	What it means	Recovery
“Sign in to load your private image library”	The account library is unavailable, not the whole image feature	Sign in for cloud media, or use the local import workflow
Search shows no items	Filters or query exclude the asset, or the library is empty	Clear search, return to All, change the kind filter, or import locally
Import refuses to start	Playback is active, there is no project, or the file type is unsupported	Pause, open/create a project, then choose a listed format
File is too large	The preprocessor could not fit it within the active limit	Resize/crop at source, export as WebP/JPEG, and retry
Image is blurry	A small raster was enlarged or heavily compressed	Use a higher-resolution source or an SVG when available
“Drawing” result is too complex	Raster tracing produced too many paths	Undo, add it as a graphic, or simplify the source before tracing
Wrong scenes changed background	The scope was set to Project	Undo if available, then apply the intended background with Scene selected
Scene will not follow the project background	It has a local override	Select that scene and choose Use Project
Local image disappears after moving environments	A blob/local asset was never uploaded or packaged	Re-import it, save/package the project with assets, or sign in and upload where supported
